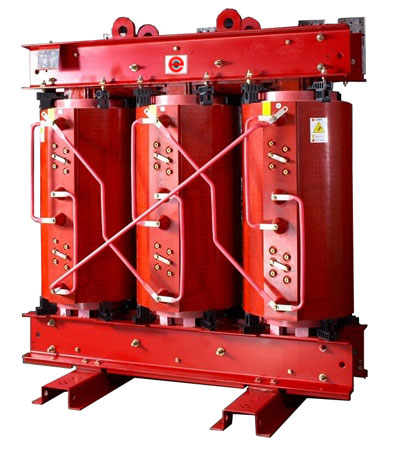

Dry Type Transformers

Emmess Manufactures DryType Cast Resin Transformers , casted coils are well known for their extremely low levels of Partial discharge.

In service in diverse industries, Electricity Boards, Nuclear / Thermal / Hydel Power Plants, Railway Traction and high-rise buildings, hospitals, subways, underground vaults, tunnels, school, steel factories, chemical plants, etc. where safety is of prime concern.

  • Precise casting under vacuum ensures extremely low levels of Partial discharge.
  • Coils have smooth finish and are robust in construction.
  • Emmess successfully conducted Seismic Qualification test on Cast resin transformers supplied to Nuclear Power Installations in India, way back in 1994.

Main Feature & Benefits :

  • Resistant short circuits (High mechanical strengths)
  • Non-flammable
  • Resistant to Temperature Fluctuations
  • Moisture Resistant since non hygroscopic
  • Space saving, permitting compact installation.
  • Practically no maintenance; Long and trouble-free service.
  • Suitable for hot and humid environments.
  • Automatic temperature control and protection.

Standard Fittings :

  • Lifting Eyes
  • Off Circuit Tap Links
  • Rating and Diagram Plate
  • High Voltage Epoxy Bushings
  • Low Voltage Epoxy Bushings
  • Winding Temperature Indicator

Optional Fittings :

  • Terminal Connectors
  • Special Termination Arrangement
  • Cable Box / Bus Duct
  • Rollers (Uni directional / Bi directional)
  • Thermal sensor like PT-100 for Indication or
  • Protection with Temperature scanner

Technical Specification :

Ratings Single Phase : CRGO - Upto 2667 kVA
Three Phase : AMT - Upto 8000 kVA
Number of Phase Single Phase and Three Phase
Applicable Standards IS, III71, IEC 726, ANSI.C.12.01 etc.
Cooling AN, ANAF
Insulating Fluid Mineral Oil to specification
Frequency 50 Hz, 60 Hz
Polarity As specified
Primary voltage Upto 33 kV
Secondary Voltage 220/127, 480/277 V (Other Voltages as required)
Winding material : Copper Copper
Taping range ± 5% in steps of 2.5% (Other tapings as required)
Impedance In line with applicable standards
